Description
Hawk Standard and XHD 2 Speed Floor Machine
Floor Stripping, Scrubbing Carpet Care

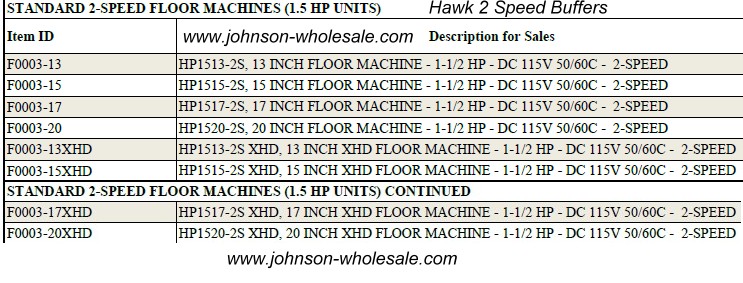

Hawk 2 Speed Models
- F03-13-01 HP1513-2S 13 INCH FLOOR MACHINE, 1-1/2 HP DC 115V 50/60 Hz
2-SPEED - F03-15-03 HP1515-2S 15 INCH FLOOR MACHINE, 1-1/2 HP DC 115V 50/60 Hz
2-SPEED - F03-17-01 HP1517-2S 17 INCH FLOOR MACHINE, 1-1/2 HP DC 115V 50/60 Hz
2-SPEED - F03-20-01 HP1520-2S 20 INCH FLOOR MACHINE, 1-1/2 HP DC 115V 50/60 Hz
2-SPEED - F04-13-01 HP1513-2S XHD 13 INCH FLOOR MACHINE WITH XHD GEARS, 1-
1/2 HP DC 115V 50/60 Hz 2-SPEED - F04-15-03 HP1515-2S XHD 15 INCH FLOOR MACHINE WITH XHD GEARS, 1-
1/2 HP DC 115V 50/60 Hz 2-SPEED - F04-17-01 HP1517-2S XHD 17 INCH FLOOR MACHINE WITH XHD GEARS, 1-
1/2 HP DC 115V 50/60 Hz 2-SPEED - F04-20-01 HP1520-2S XHD 20 INCH FLOOR MACHINE WITH XHD GEARS, 1-
1/2 HP DC 115V 50/60 Hz 2-SPEED

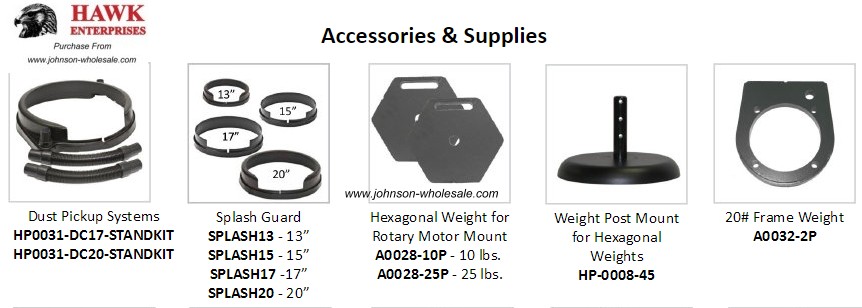

Order Pad Driver Click here for HAWK PARTS AND ACCESSORIES

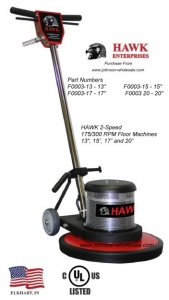

The Hawk 2-speed
floor machine performs heavy-duty scrubbing and stripping at the standard
175 RPM speed. With the flip of the conveniently located toggle switch, buff
and polish at 320 RPM.
Power
• 1.5 HP, 66 frame, DC rectified 2-speed motor
• 115V, 60 Hz power, (230V optional)
• 50 ft., (14-3) STO industrial power cord with molded plug
• Change speed with Hi-Lo speed control switch on the handle
Power
• 1.5 HP, 66 frame, DC rectified 2-speed motor
• 115V, 60 Hz power, (230V optional)
• 50 ft., (14-3) STO industrial power cord with molded plug
• Change speed with Hi-Lo speed control switch on the handle
Drive System
• Triple-planetary HD 10:1 helical-cut commercial gears drive
• Triple-planetary HD 10:1 helical-cut commercial gears drive
pads/brushes at
175 or 320 RPM
Engineered Design
• All steel construction with welded, powder-coated frame
• One piece chrome, heavy-duty steel handle with variable position lock
• All steel construction with welded, powder-coated frame
• One piece chrome, heavy-duty steel handle with variable position lock
and vinyl grips
• 13", 15”, 17” and 20” steel brush covers with full wraparound bumper
• Dual steel operating triggers. Negative pressure on/off switch
• 1” x 5” non-marking ball bearing wheels
• 13", 15”, 17” and 20” steel brush covers with full wraparound bumper
• Dual steel operating triggers. Negative pressure on/off switch
• 1” x 5” non-marking ball bearing wheels
• The addition of
weights can stress equipment components. Adding
weights to non-XHD
models is not commended.
Safety Features
• Quiet operation – 62 dB (low speed), 69 dB (high speed). Meets
• Quiet operation – 62 dB (low speed), 69 dB (high speed). Meets
GS42 standard.
• UL/CUL listed
• UL/CUL listed
Part Numbers
